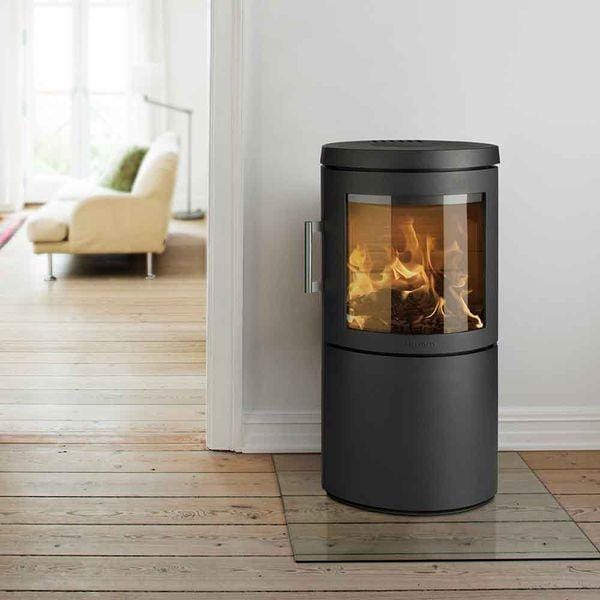

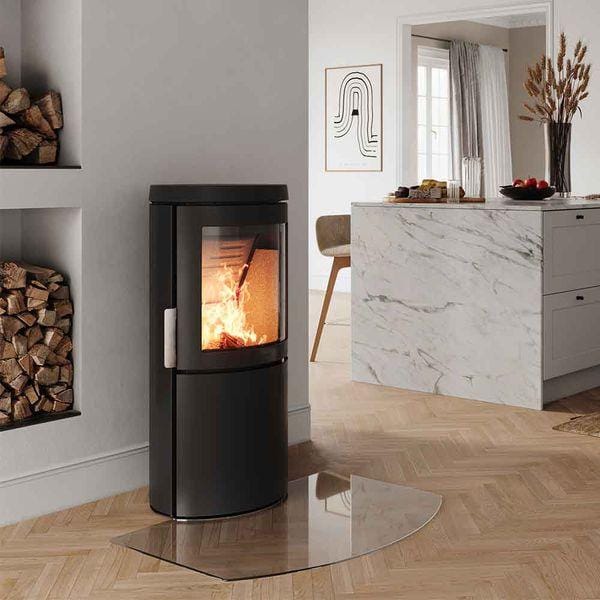

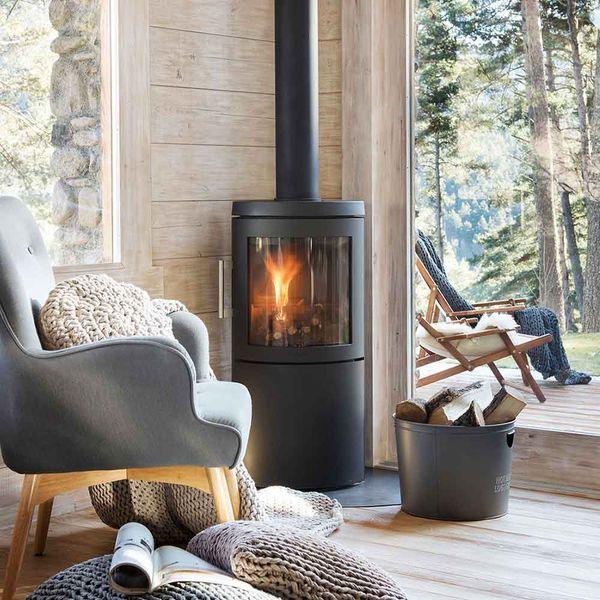

HWAM 3120c in grey

Description

Give in to the fascination of the dancing flames from HWAM 3120c. The curved glass in the door of the stove invites the family to enjoy the view of the flames from many angles in the room.

The elliptical shape gives HWAM 3120c an attractive, light expression. Form and finish throughout make it possible to install the stove in a corner, on a straight wall and even in the centre of the room.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 79.0
• Efficiency, HWAM® SmartControl™ (%): 81.0
• Nominal heat output, HWAM® Autopilot™ (kW): 4.8
• Nominal heat output, HWAM® SmartControl™ (kW): 4.5
• Smoke outlet (Ø): 5″/6″
• Chimney draught, recommended (Pa): 12.0
• Height: 100.4
• Width: 47.7
• Depth: 40.8
• Combustion chamber: 33.0
• Steel cladding, c/m door: 107.0
• From floor with SmartControl™, top: 97.5
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Mantel piece: 45.0
• Floor: 0.0
• Behind: 7.5
• Side: 19.5
• Sides, in front of the stove: 40.0
• In front: 100.0
• Furnishing in front: 100.0
• Corner, 45°: 10.0
• 1: Behind: 10.0
• EN 13240: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• Flamme Verte: Yes
• Classificazione: 3 stelle
• ECODESIGN Compliant: Yes
• DIBt: Yes
• HKI: Yes

Key Features:

• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• Comfort: A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
• Materials: Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
• Unique Door System: All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
