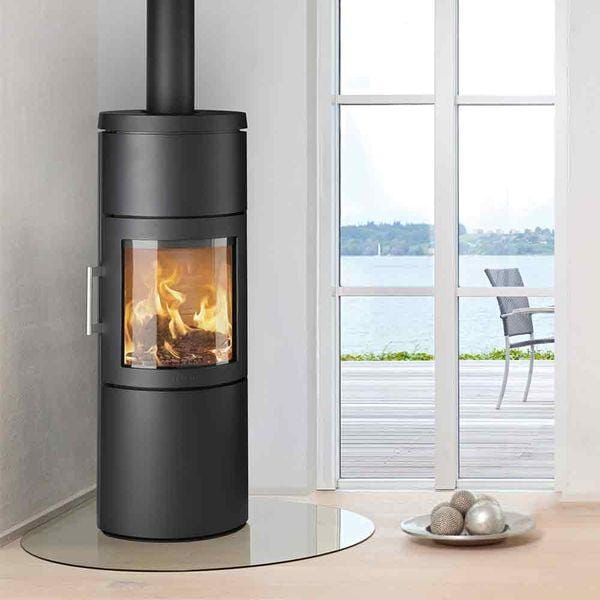

HWAM 3130c in black

Description

Details for HWAM 3130c in black.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 79.0
• Efficiency, HWAM® SmartControl™ (%): 81.0
• Nominal heat output, HWAM® Autopilot™ (kW): 4.8
• Nominal heat output, HWAM® SmartControl™ (kW): 4.5
• Smoke outlet (Ø): 5″/6″
• Chimney draught, recommended (Pa): 12.0
• Height: 126.0
• Width: 47.5
• Depth: 41.3
• Combustion chamber: 33.0
• Steel cladding, c/m door: 113.0
• Heat storage stones: 32.0
• From floor with SmartControl™, top: 97.5
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Mantel piece: 45.0
• Floor: 0.0
• Behind: 7.5
• Side: 19.5
• Sides, in front of the stove: 40.0
• In front: 100.0
• Furnishing in front: 100.0
• Corner, 45°: 10.0
• 1: Behind: 10.0
• EN 13240: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• Flamme Verte: Yes
• Classificazione: 3 stelle
• ECODESIGN Compliant: Yes
• DIBt: Yes
• HKI: Yes

Key Features:

• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
