HWAM 3660m in black

Description

The minimalist exterior conceals advanced technology, a firewood box and a heat storage compartment

HWAM 3660 is an ecofriendly and tall, attractive wood-burning stove that has a storage space beneath the combustion chamber and a heat storage compartment at the top. When the heat storage compartment is filled with stone, some of the heat is retained and subsequently given off over several hours.

Options:
HWAM 3660m (modern door) – Available with grey or black steel
HWAM 3660c (classic door) – Available with grey or black steel
HWAM 3660m (modern door) – Available with soapstone or sandstone cover – grey or black steel
HWAM 3660c (classic door) – Available with soapstone or sandstone cover – grey or black steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 78.3
• Efficiency, HWAM® SmartControl™ (%): 80.7
• Nominal heat output (kW): 6.0
• Smoke outlet (Ø): 6″
• Chimney draught, recommended, HWAM® Autopilot™ (Pa): 11.0
• Chimney draught, recommended, HWAM® SmartCntrol™ (Pa): 12.0

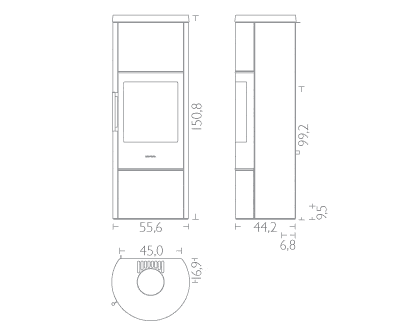

• Height: 150.8
• Width: 60.0
• Depth: 44.2
• Combustion chamber: 38.0
• Steel cladding, c/m door: 168.0
• Heat storage stones: 55.0
• From floor with SmartControl™, top: 112.3
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Behind: 10.0
• Side: 40.0
• Sides, in front of the stove: 40.0
• In front: 90.0
• Furnishing in front: 90.0
• Corner, 45°: 48.0
• EN 13240: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• Classificazione: 4 stelle
• ECODESIGN Compliant: Yes
• DIBt: Yes
• HKI: Yes

Key Features:

• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• Comfort: A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
• Materials: Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
• Unique Door System: All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
• Heat storage: Heat storage is a phenomenon known from the large mass stoves where heat is stored in the stones surrounding the combustion chamber.
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
