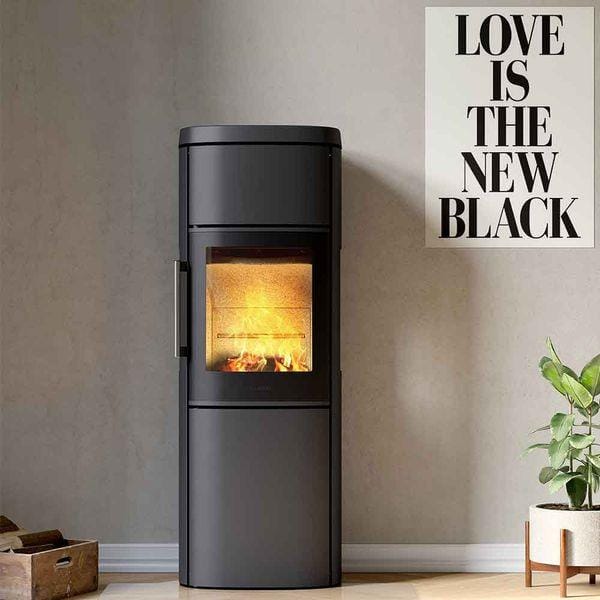

HWAM 4560c in black

Description

Options:
HWAM 4560m (modern door) – Available in grey or black steel
HWAM 4560c (classic door) – Available in grey or black steel
HWAM 4560m (modern door) – Available with soapstone or natural stone cover – black or grey steel
HWAM 4560c (classic door) – Available with soapstone or natural stone cover – black or grey steel

HWAM® SmartControl™ is available as internal fitting in this HWAM wood-burning stove.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A +
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 82.0
• Efficiency, HWAM® SmartControl™ (%): 81.0
• Nominal heat output (kW): 4.9
• Smoke outlet (Ø): 6″
• Chimney draught, recommended (Pa): 12.0

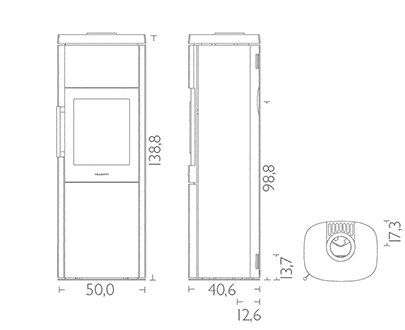

• Height: 138.8
• Width: 50.0
• Depth: 40.6
• Combustion chamber: 35.8
• Steel cladding, c/m door: 129.0
• Heat storage stones: 29.0
• From floor, top: 111.4
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Behind: 10.0
• Side: 35.0
• Sides, in front of the stove: 35.0
• In front: 110.0
• Furnishing in front: 110.0
• Corner, 45°: 31.0
• EN 13240: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• Flamme Verte: Yes
• Classificazione: 3 stelle
• ECODESIGN Compliant: Yes
• DIBt: Yes
• HKI: Yes

Key Features:

• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
• Heat storage: Heat storage is a phenomenon known from the large mass stoves where heat is stored in the stones surrounding the combustion chamber.
• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
