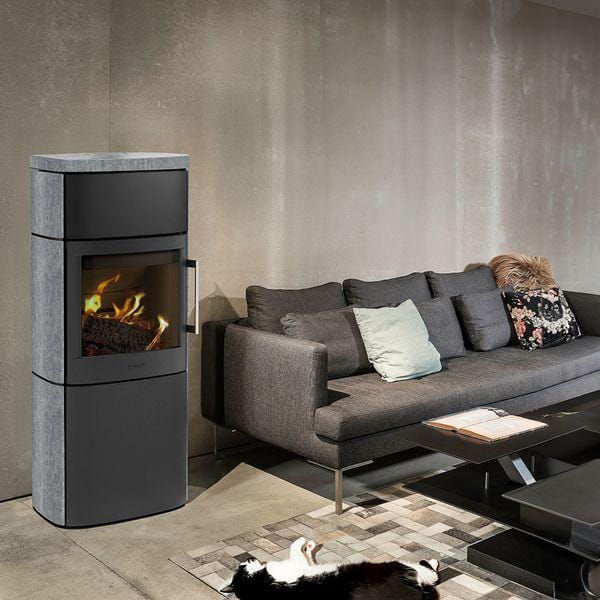

HWAM 4660c in grey with soapstone

Description

Details for HWAM 4660c in grey with soapstone.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 80,0
• Efficiency, HWAM® SmartControl™ (%): 81,0
• Nominal heat output, HWAM® Autopilot™ (kW): 7.0
• Nominal heat output, HWAM® SmartControl™ (kW): 8.0
• Smoke outlet (Ø): 150,0
• Chimney draught, recommended (Pa): 12.0
• Height: 138,8
• Width: 63,0
• Depth: 40,6
• Combustion chamber: 49,0
• Steel cladding, c/m door: 153,0
• Soapstone cladding, c/m door: 224,0 / 222,0
• Tobacco cladding, c/m door: 199,0 / 197,0
• Dark Galaxy cladding, c/m door: 222,0 / 220,0
• Moca Cream cladding, c/m door: 204,0 / 202,0
• Heat storage stones: 45,0
• From floor, top: 111,4
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Behind: 20,0
• Side: 35,0
• Sides, in front of the stove: 35,0
• In front: 130,0
• Furnishing in front: 130,0
• Corner, 45°: 41,0
• EN 13240: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• Flamme Verte: Yes
• Classificazione: 3 stelle
• ECODESIGN Compliant: Yes
• DIBt: Yes
• HKI: Yes

Key Features:

• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• Comfort: A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
• Materials: Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
• Unique Door System: All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
