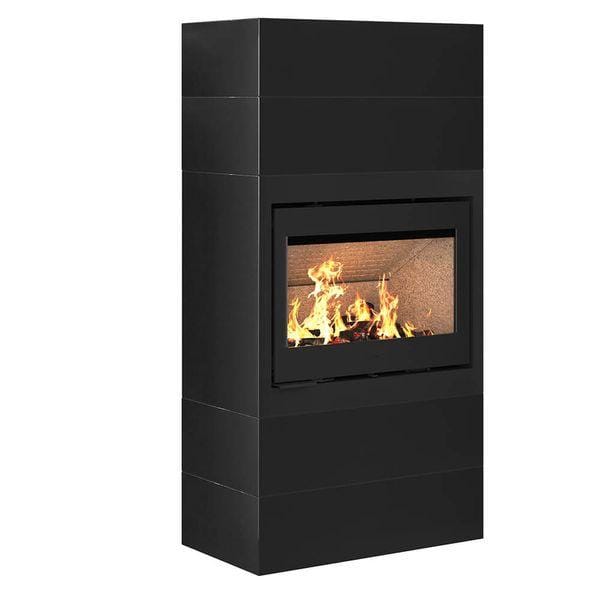

HWAM 5580c

Description

Modular wood-burning stove with many options
When you choose a HWAM 5500, you’re not just choosing a heat source. It’s a piece of furniture in your home – a unique piece of furniture you can warm yourself with and enjoy looking at. You have the opportunity to customise your wood burning stove to make it exactly the way you want it, with several different modules available as options.

The wood burning stove is available in several heights and if you want to increase the height even more, you can purchase additional modules.

Technical Specifications:

• Energy efficiency class HWAM® Autopilot™: A
• Energy efficiency class HWAM® SmartControl™: A +
• HWAM® Autopilot™: Yes
• HWAM® SmartControl™: Yes
• Efficiency, HWAM® Autopilot™ (%): 80
• Efficiency, HWAM® SmartControl™ (%): 83
• Nominal heat output, HWAM® Autopilot™ (kW): 6.4
• Nominal heat output, HWAM® SmartControl™ (kW): 6.0
• Smoke outlet (Ø): 150,0
• Chimney draught, recommended, HWAM® Autopilot™ (Pa): 12.0
• Chimney draught, recommended, HWAM® SmartCntrol™ (Pa): 12.0
• Height: 162,5
• Width: 81,5
• Depth: 45,5
• Combustion chamber: 44,3-62,7
• Steel cladding, c/m door: 180,0 / 178,0
• Heat storage stones: 73,0
• Narrow module without drawer: 25.0

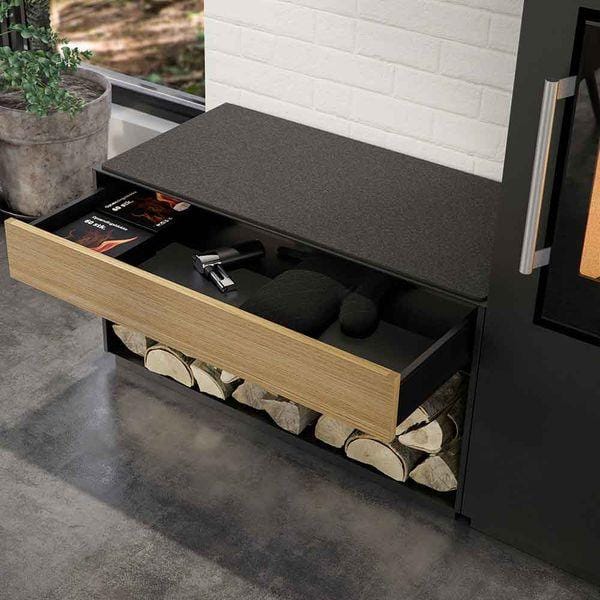

• Narrow module with drawer: 37.0
• Wide module without drawer: 45.0
• Wide module with drawer: 55.0
• Tall bookcase: 56.0
• Reinforcing floor plate: 5.0
• Extra module: 12.0
• From floor, top: 22,2
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Combustion system: HWAM® Autopilot™
• Mantel piece: 50,0
• In front: 120,0
• Furnishing in front: 120,0
• Behind: 5,0
• EN 13229: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• UK CA: Yes
• Flamme Verte: Yes
• Conto termico: Yes
• Classificazione: 4 stelle
• ECODESIGN Compliant: Yes

Key Features:

• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• Unique Door System: All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
• Materials: Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
• Comfort: A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
• HWAM® SmartControl™: With HWAM® SmartControl™ you need not worry about how to achieve the optimum and most eco-friendly combustion — the electronic control will take care of this.
