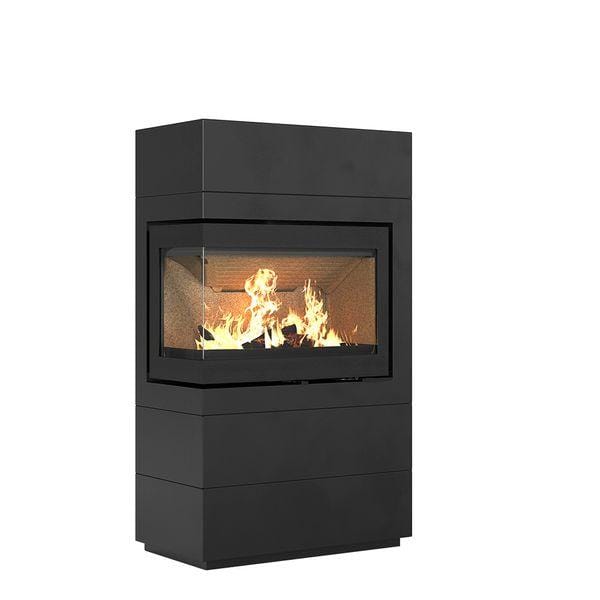

HWAM 5650c Corner wood-burning stove

Description

– according to your wishes
In all the designs, function and aesthetics go hand in hand with respect for your home decor. The HWAM 5600 module series comprise different elements and can be supplemented with tall and low modules, and with storage space for firewood, fire lighters and similar, or for displaying your favorite decor. You also get the option of adding heat storage stones in most models, so that the heat is released over a longer period of time.

Technical Specifications:

• Energy efficiency class: A
• HWAM® Autopilot™: Yes
• Efficiency (%): 79
• Nominal heat output (kW): 7.1
• Smoke outlet (Ø): 150,0
• Chimney draught, recommended (Pa): 12.0
• Height: 140,0
• Width: 81,5
• Depth: 45,2
• Combustion chamber: 62,8
• Steel cladding, c/m door: 176,0 / 173,0
• Heat storage stones: 67,0
• Narrow module without drawer: 25.0
• Narrow module with drawer: 37.0
• Wide module without drawer: 45.0
• Wide module with drawer: 55.0
• Tall bookcase: 56.0
• Reinforcing floor plate: 5.0
• Extra module: 12.0
• Combustion air system can be mounted, back (Ø 100 mm): Yes
• Combustion air system can be mounted, bottom (Ø 100 mm): Yes
• Combustion system: HWAM® Autopilot™
• Mantel piece: 35,0
• Sides, in front of the stove: 27,0
• In front: 130,0
• Furnishing in front: 130,0
• Behind: 5,0
• Side: 5,0
• EN 13229: Yes
• NS 3058/3059: Yes
• LRV: Yes
• BImSchV Stufe 2: Yes
• RLU: Yes
• DEFRA Exempt: Yes
• UK CA: Yes
• Flamme Verte: Yes
• Conto termico: Yes
• Classificazione: 4 stelle
• ECODESIGN Compliant: Yes

Key Features:

• Combustion Air System: No oxygen, no fire. It’s that simple. That is why a constant flow of air to the wood-burning stove is needed to create clean and effective combustion in your HWAM.
• Convection: All HWAM and WIKING wood-burning stoves are convection stoves. This means that the wood-burning stove quickly emits heat after lighting.
• 3 way “Airwash”: Dancing flames are both fascinating and relaxing. Furthermore, flames are beautiful in all phases from the initial lighting to the burning of coals.
• Unique Door System: All HWAM & WIKING stoves have an easy and unique door closing system, which ensures that the door fits tightly
• Materials: Here at HWAM, we have been working with sheet iron for more than 45 years, and we know what advantages it provides for our customers.
• Comfort: A HWAM and WIKING wood-burning stove is designed for user-friendliness throughout the duration of its service lifetime.
• HWAM® Autopilot™: A wood-burning stove with HWAM® Autopilot ™ ensures excellent combustion – for the benefit of the environment and your firewood consumption – without any manual regulation of the air supply.
